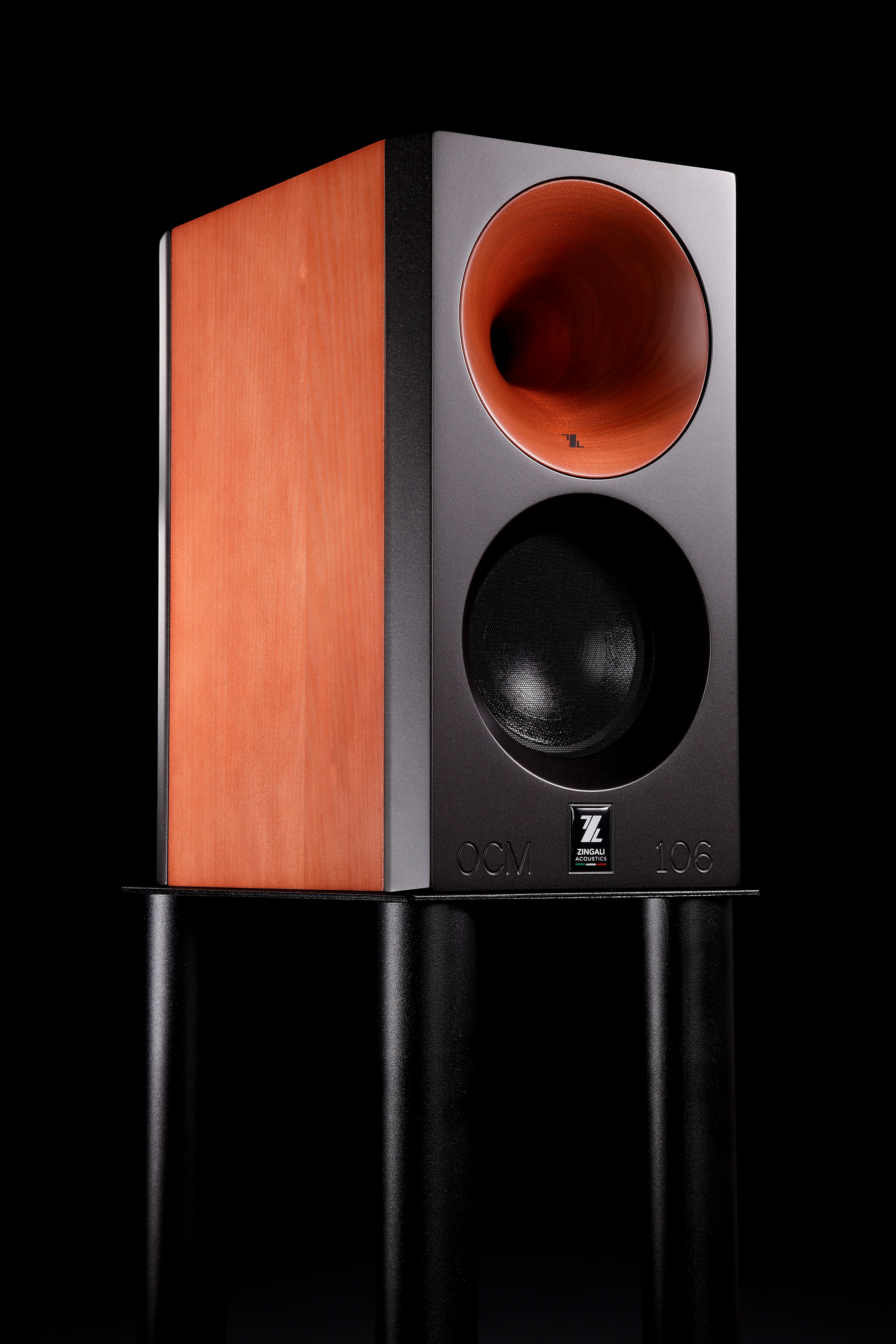

Technical Data: OCM 106
System type: Bass Reflex
Dome Driver:
Woofer:
Horn:
1” - Coil 25 mm
1 x 6.5” Coil 39 mm
Omniray GZ 6”
Power RMS: 200 W (AES)
Nominal Imp. : 8 Ω
Freq.Response: 40 Hz – 21 kHz
Cx Frequency: 1600 Hz 12 dB/Oct
Sensitivity: 92 dB (1W/1mt)
Dispersion: 120° Circular (-6
dB)
Dim. (H x W x D) 390 x 210 x 315
Cabinet: mdf 16 mm Toulipiè
mdf 32 mm
Finish:
Cabinet & Horn :
Front/Rear Panel
Satin Cherry
Satin Black
Net Weight: 10
